VORTECAIR FLOW AMPLIFIERS
VORTEC
Air Flow Amplifiers deliver a large airflow for conveying, drying, cooling or ventilation. These high flow, bladeless blowers have no moving parts so they are inherently safe. They amplify compressed air volumes by 12 – 20 fold in ducted applications. They are especially useful for removing metal chips and scrap, ventilating fumes or smoke, and conveying small parts, pellets, powders and dust.
As a vacuum or blow-off device, air amplifiers are more compact and less expensive than variable-speed blowers and fans, provide instant on/off performance, and operate at low noise levels to meet OSHA requirements. Air Flow Amplifiers are easily mounted and can be used in both ducted and unducted applications. They are available in several sizes, both aluminum and stainless steel and deliver flow rates from 32 to 2300 SCFM (900 to 65,000 SLPM).

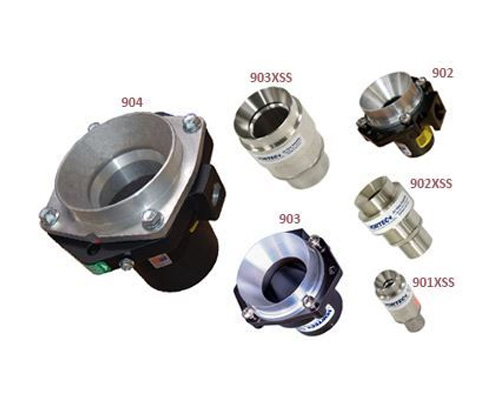

Model# 901XSS 902 902XSS
Air Amplification 5 12 12
Suction End Diameter (inches) 1 1.75 1.5
Ducted Output (scfm) 45 204 204
Material of Construction Stainless Steel Aluminum Stainless Steel
Model# 903 903XSS 904
Air Amplification 19 19 20
Suction End Diameter (inches) 2.75 2.5 5
Ducted Output (scfm) 475 475 1420
Material of Construction Aluminum Stainless Steel Aluminum
