Welded Metal Bellows

Metal Bellows Seals

Application Range

- max.pressure : 23kg/㎠
- max.temperature : -30°C ~ +230°C
- max.viscosity : 1000cp
- slurry : 2%max

Particular’s of type

- Metal bellows type
- viton o-ring used
- High pressure
- High temperature

Compatible Seal Liquid

- Hot oil, Salt, Hydrocarbon
- Waste pulp solution, Alkali
- Cystallizing acid, etc.

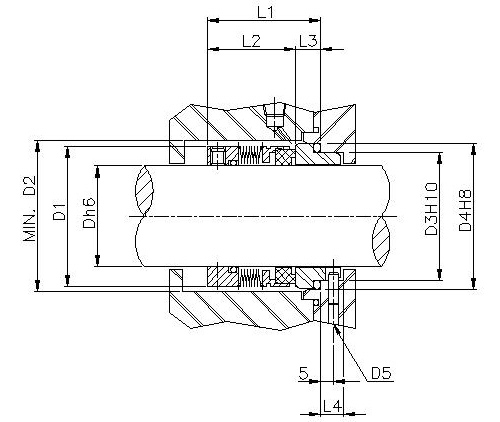

SEAL	D1	D2	D3	D4	D5	D6	L1	L2	L3	L4
SIZE	h6	H11	H8	MIN	H8		±0.5
M018	18	31.8	34	27	33	3	37.5	27.5	10	9
M020	20	33.3	36	29	35	3	37.5	27.5	10	9
M022	22	36.5	38	31	37	3	37.5	27.5	10	9
M025	25	39.3	41	34	40	3	40.0	30.0	10	9
M028	28	42.2	44	37	43	3	42.5	32.5	10	9
M030	30	44.2	46	39	45	3	42.5	32.5	10	9
M032	32	46.0	48	42	48	3	42.5	32.5	10	9
M033	33	47.2	49	42	48	3	42.5	32.5	10	9
M035	35	49.2	51	44	50	3	42.5	32.5	10	9
M038	38	52.4	58	49	56	4	45.0	34.0	11	9
M040	40	55.5	60	51	58	4	45.0	34.0	11	9
M043	43	58.7	63	54	61	4	45.0	34.0	11	9
M045	45	58.7	65	56	63	4	45.0	34.0	11	9
M048	48	61.9	68	59	66	4	45.0	34.0	11	9
M050	50	65.1	70	62	70	4	47.5	34.5	13	9
M053	53	68.2	73	65	73	4	47.5	34.0	13	9
M055	55	71.4	75	67	75	4	47.5	34.5	13	9
M058	58	74.6	83	70	78	4	52.5	39.5	13	9
M060	60	74.6	85	72	80	4	52.5	39.5	13	9
M063	63	80.9	88	75	83	4	52.5	39.5	13	9
M065	65	84.1	90	77	85	4	52.5	39.5	13	9
M068	68	87.3	93	81	90	4	52.5	39.5	15.3	9
M070	70	87.3	95	83	92	4	60.0	44.7	15.3	9
M075	75	95.2	104	88	97	4	60.0	44.7	15.3	9
M080	80	101.6	109	95	105	4	60.0	44.3	15.7	9
M085	85	104.8	114	100	110	4	60.0	44.3	15.7	9
M090	90	111.1	119	105	115	4	65.0	49.3	15.7	9
M095	95	114.3	124	110	120	4	65.0	27.5	49.3	9
M100	100	120.6	129	115	125	4	65.0	49.3	15.7	9
