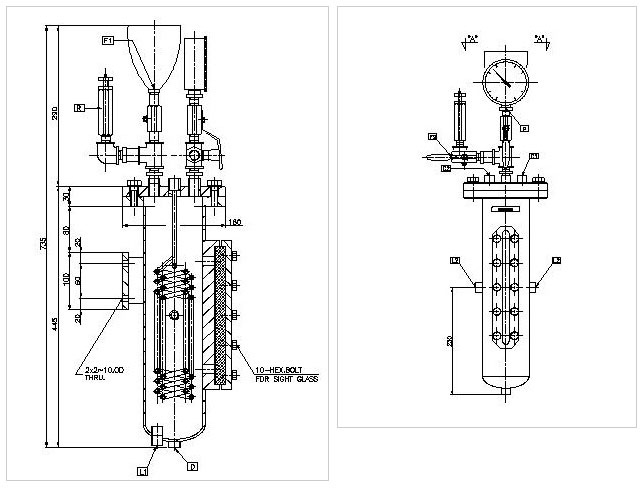

KSLReservoir

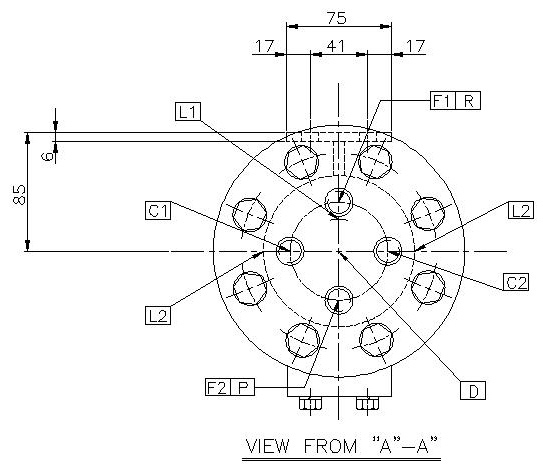

| NOZZLE ORIENTATION | ||
|---|---|---|
| NO | SERVICE | CONNECTION |
| C1 | COOLING WATER IN | PT 3/8" |
| C2 | COOLING WATER OUT | PT 3/8" |
| F1 | SEANANT FILLING | PT 3/8" |
| F2 | N2 GAS SUPPLY | PT 3/8" |
| L1 | SEALANT RETURN | PT 3/8" |
| L2 | SEALANT SUPPLY | PT 3/8" |
| D | DRAING HOLE | PT 3/8" |
| P | PRESSURE GAUGE | PT 3/8" |
| R | RELIEF VALVE | PT 3/8" |
