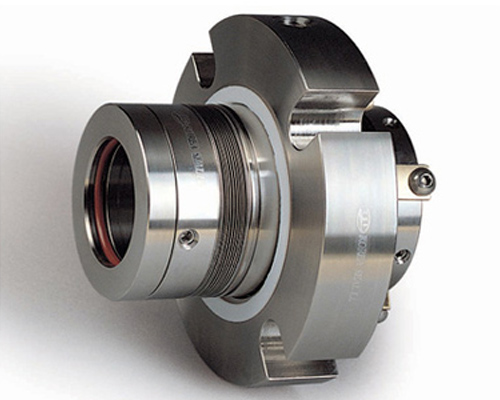

Welded Metal Bellows
Cartridge Seals
Application Range
- max.pressure : 20kg/㎠
- max.temperature : -40°C ~ +200°C
- max.viscosity : 1000cp
- slurry : 3%max
Particular’s of type
- Ease of installation
- Metal bellows type
- Extreme corrosion resistance
- Cartridge mounted
Compatible Seal Liquid
- Chemical processing
- Mixer, Agitator
- Oil & refinery pump

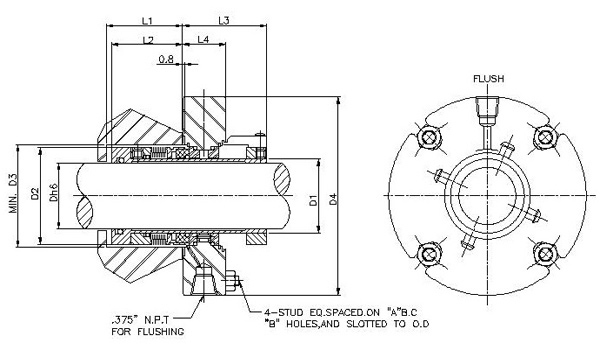

(MM)
D D1 D2 D3 D4 L1 L2 L3 L4 A B
SHAFT DIA SEAL SIZE MIN. MAX. MIN. ±0.5 MIN.
M025 28 42.2 44 49 95 45.5 43.0 50.8 25.8 70.0 11.2
M028 32 46.0 48 52 98 45.5 43.0 50.8 25.8 76.2 14.3
M032 35 49.2 51 55 108 45 42.5 50.8 25.8 79.4 14.3
M035 40 55.5 58 65 120 47 44.5 50.8 25.8 95.2 11.2
M040 45 58.7 61 68 120 47 44.5 50.8 25.8 95.2 14.3
M045 50 65.1 67 74 127 50 47.5 50.8 25.8 95.4 14.3
M050 55 71.4 73 84 152 50 47.5 50.8 25.8 111.1 17.5
M055 60 74.6 77 87 165 50 47.5 50.8 25.8 117.5 17.5
M060 65 84.1 86 96 168 55 52.5 53.1 28.2 127.0 17.5
M065 70 87.3 89 100 184 55 52.5 53.1 28.2 146.0 20.7
(INCH)
D D1 D2 D3 D4 L1 L2 L3 L4 A B
SHAFT DIA SEAL SIZE MIN. MAX. ±0.5 MIN.
1.000" 1.125" 1.687" 1.750" 1.875" 3.75" 1.78" 1.68" 2.00" 1.02" 2.75" .375"
1.125" 1.250" 1.812" 1.750" 2.000" 3.85" 1.78" 1.68" 2.00" 1.02" 3.00" .500"
1.250" 1.375" 1.937" 2.000" 2.125" 4.25" 1.97" 1.68" 2.00" 1.02" 3.12" .500"
1.375" 1.500" 2.062" 2.000" 2.250" 4.25" 1.97" 1.68" 2.00" 1.02" 3.25" .375"
1.500" 1.625" 2.187" 2.250" 2.500" 4.75" 1.97" 1.68" 2.00" 1.02" 3.75" .375"
1.625" 1.750" 2.311" 2.375" 2.625" 4.75" 1.97" 1.68" 2.00" 1.02" 3.75" .500"
1.750" 1.875" 2.430" 2.500" 2.750" 5.00" 1.97" 1.68" 2.00" 1.02" 3.75" .500"
1.875" 2.000" 2.562" 2.625" 2.875" 5.00" 1.97" 1.68" 2.00" 1.02" 3.88" .500"
2.000" 2.125" 2.685" 2.750" 3.000" 5.62" 1.97" 1.68" 2.00" 1.02" 4.12" .625"
2.125" 2.250" 2.812" 2.875" 3.250" 6.00" 1.97" 1.68" 2.00" 1.02" 4.38" .625"
2.250" 2.375" 2.937" 3.000" 3.375" 6.30" 1.97" 1.68" 2.00" 1.02" 4.62" .625"
2.375" 2.500" 3.187" 3.250" 3.625" 6.38" 2.16" 2.06" 2.09" 1.11" 5.00" .625"
2.500" 2.625" 3.311" 3.375" 3.750" 6.62" 2.16" 2.06" 2.09" 1.11" 5.00" .625"
2.625" 2.750" 3.437" 3.500" 3.875" 7.25" 2.16" 2.06" 2.09" 1.11" 5.75" .750"
