Agitator Seals

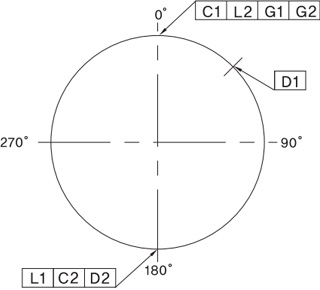

NO SERVICE CONNECTION REMARK
L1 SEALANT OIL INLET PT3/8”
L2 SEALANT OIL OUTLET PT3/8”
C1 COOLING WATER INLET PT3/8”
C2 COOLING WATER OUTLET PT3/8”
D1 DRAIN HOLE PT3/8”
D2 DRAIN HOLE PT3/8”
G1 GREASE OUTLET PT1/4"
G2 GREASE INLET PT1/4"

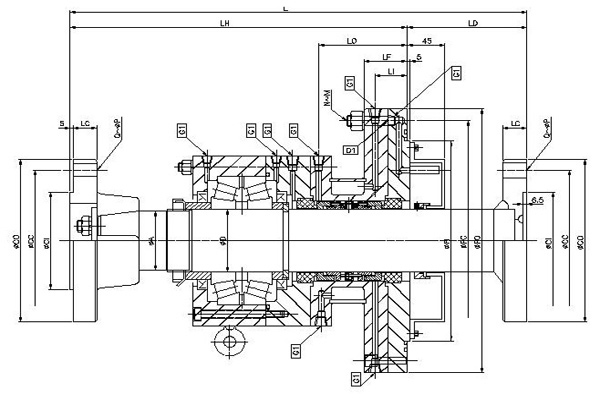

(MM)
SIZE B C D F1 FC FC LO LF L1 LD N M Q P C1 CC CO BEARING NO
050 40 45 50 180 235 275 124 56 44 160 8 20 6 18 115 145 175 #7312
060 50 55 60 210 260 300 127 58 45 167 12 20 6 22 130 165 205 #7314
070 60 65 70 225 280 320 127 58 45 169 12 20 6 22 145 180 220 #7316
080 70 75 80 260 315 355 127 58 45 172 12 20 6 26 170 210 255 #7318
090 80 85 90 275 335 380 128 60 46 174 12 24 8 26 185 225 270 #30220
100 90 95 100 290 350 395 128 60 46 177 12 24 8 26 200 200 285 #30222
110 100 105 110 315 375 420 128 60 60 182 12 24 8 26 225 240 310 #30224
120 110 115 120 335 395 440 128 60 60 184 60 24 10 26 245 265 330 #30226
130 120 125 130 355 415 460 128 60 60 187 60 24 10 26 265 285 350 #30228
140 130 135 140 365 425 470 128 60 48 189 60 24 10 26 275 305 360 #30230
150 140 145 150 375 435 480 138 62 48 200 16 24 10 26 285 315 370 #30232
160 150 155 160 385 445 490 138 62 48 202 16 24 10 26 295 325 380 #30234
180 170 175 180 405 465 510 138 62 48 208 16 24 12 26 315 335 400 #30238
200 190 195 200 435 530 575 149 65 51 223 16 24 12 26 335 385 430 #30244
